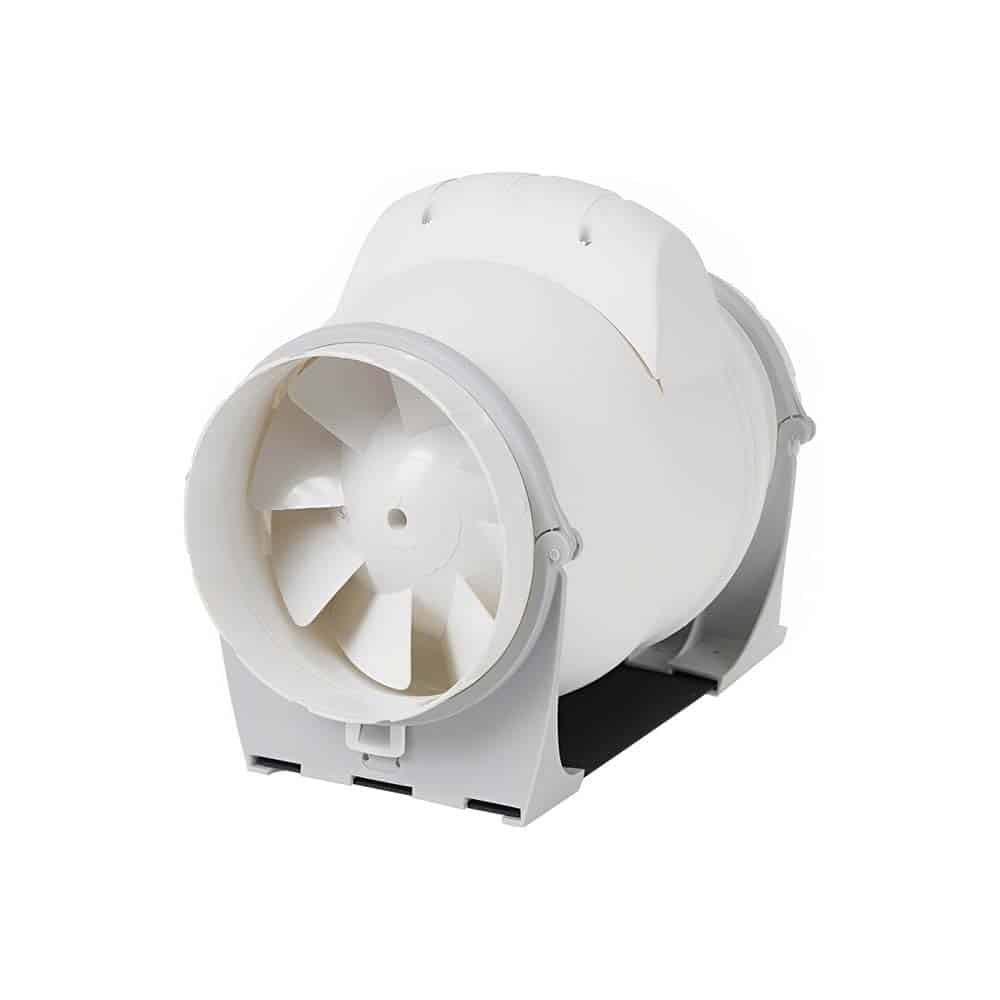

Elicent AXM Features Overview: Capacity 300 m3/hr (83.33 l/s) Noise 44 dB(A) Voltage 220-249 Motor RPM 1700 / 2300 Motor Height 232mm Ductable Yes – 125mm diameter Constructed from durable polypropylene, making them suitable for direct installation within ductwork. A key design feature allows for easy inspection and maintenance by simply opening the clamp and removing the fan unit. These fans utilise a helicocentrifugal mixed flow impeller with a downstream stator crafted from ABS material. Depending on the specific model, they are equipped with asynchronous motors offering 2 or 3 speeds. The fans have an IP44 protection rating and a Motor Class B insulation. A robust, maintenance-free motor with ball bearings ensures reliable operation. Speed control can be achieved using phase control or a transformer, except for timer-equipped versions. Thermal overload protection is included as a standard safety feature. An externally fitted terminal box with a cable entry grommet simplifies electrical connections. These fans are designed for high efficiency, resulting in minimal energy costs. Their quiet running is attributed to optimised aerodynamics and the inclusion of guide vanes. Installation is made easy with pre-installed mounting brackets and an external connection box. The loosening of clamps further simplifies maintenance, eliminating the need to handle the ductwork. The design allows for versatile installation options. Max temperature – 40 degrees. View the comprehensive manuals below to learn more about the product and how it’s installed. Refer to this spec sheet for more information: AXM- Spect Sheet. Refer to this user manual for more information: Manual AXM.
