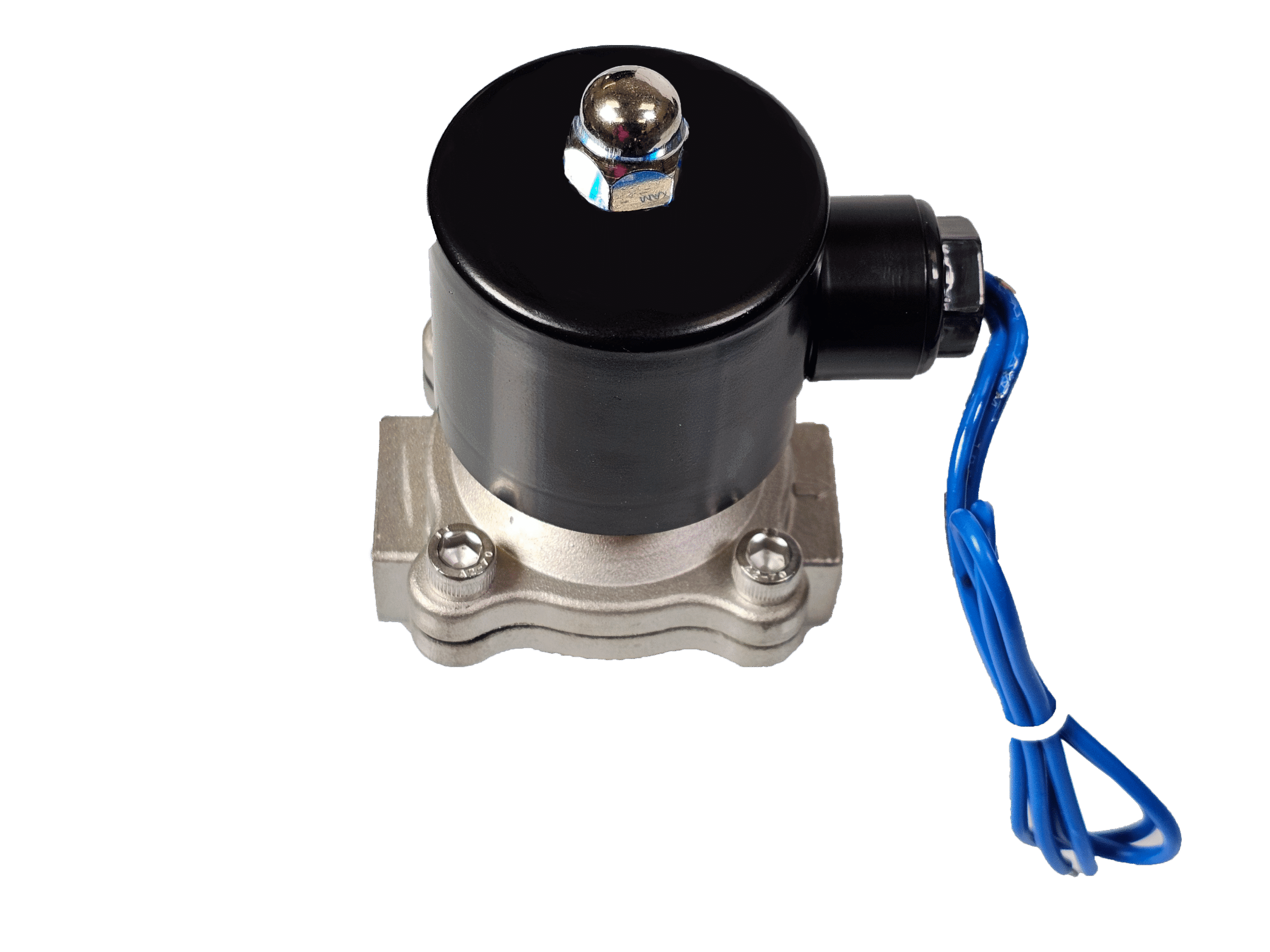

Description Normally, the valve is closed. When 12VDC is applied to the two terminals, the valve opens and water can flow. There is no minimum pressure requirement. Made of stainless steel, with a rubber gasket made of NBR (Nitrile Rubber) so it can be used with any fluid that will not damage or be damaged by the rubber gasket material. Specifications: 1/2″ Nominal NPS Working Liquid Pressure: 0 Mpa – 1.0 Mpa (140 PSI) Working Temperature: -5°C – 80°C (23°F-176°F Actuating voltage: 12VDC Nominal Amperage: 3.2A Actuating life: 50 million cycles Weight: 1.7 lbs Dimensions: 4-1/8” T x 2-1/8” W x 2-1/2” L In-Line Mounting Recommended Choice of valve only or valve with 5/8″ hose fittings attached
